OXY-ProXT2 – Oxygen Transmitter
Contact our experienced engineers to discuss your application needs.
Details
- Dual channel solution
- Configuration A: Two independent 0…25% O₂ sensors
- Configuration B: 0…25% O₂ (Ch1) + 0…1.25% O₂ fine range (Ch2)
- Enhanced low-level oxygen accuracy down to 50 ppmV (fine range)

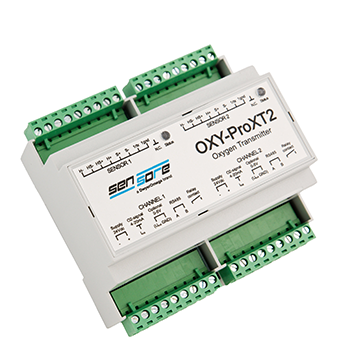

The OXY-ProXT2 is a dual-channel oxygen transmitter designed for applications requiring two independent O₂ measurements or a combined coarse and fine measurement range.
It uses SMART sensors based on O₂ diffusion-limiting zirconia technology, providing a reliable, long-life solution for continuous oxygen measurement. Each sensor is individually calibrated against an O₂ reference, with the calibration data stored directly within the sensor. When connected to the transmitter, the relevant calibration and operating parameters are automatically transferred, supporting straightforward plug-and-play integration.
The OXY-ProXT2 is compatible with a wide range of sensors and thread or flange configurations from the SENSORE product portfolio, allowing the system to be adapted to different mechanical and measurement requirements.
In Configuration B, the transmitter combines a coarse-range sensor with a fine-range 0…1.25% O₂ sensor. This fine-range channel provides high-resolution measurement at low oxygen concentrations, making the OXY-ProXT2 particularly suitable for applications where precise process oxygen monitoring is required across different measurement ranges.
It uses SMART sensors based on O₂ diffusion-limiting zirconia technology, providing a reliable, long-life solution for continuous oxygen measurement. Each sensor is individually calibrated against an O₂ reference, with the calibration data stored directly within the sensor. When connected to the transmitter, the relevant calibration and operating parameters are automatically transferred, supporting straightforward plug-and-play integration.
The OXY-ProXT2 is compatible with a wide range of sensors and thread or flange configurations from the SENSORE product portfolio, allowing the system to be adapted to different mechanical and measurement requirements.
In Configuration B, the transmitter combines a coarse-range sensor with a fine-range 0…1.25% O₂ sensor. This fine-range channel provides high-resolution measurement at low oxygen concentrations, making the OXY-ProXT2 particularly suitable for applications where precise process oxygen monitoring is required across different measurement ranges.
Applications:
Laboratory / Measuring instrumentation:
- Oxygen meter
- Measurements under controlled O2 content
- Inert gas processing cabinets (glove boxes)
- Incubators (controlled bacterial growth)
Food industry:
- Packaging and controlled food testing
Medical:
- Oxygen concentrators
Industry:
- Nitrogen/Oxygen concentrators
- Additive Manufacturing (AM)
- Inert gas processing machines and cabinets
- Inert gas welding monitoring
- Storage with increased N2 atmosphere (oxidation prevention)
- Drying units
