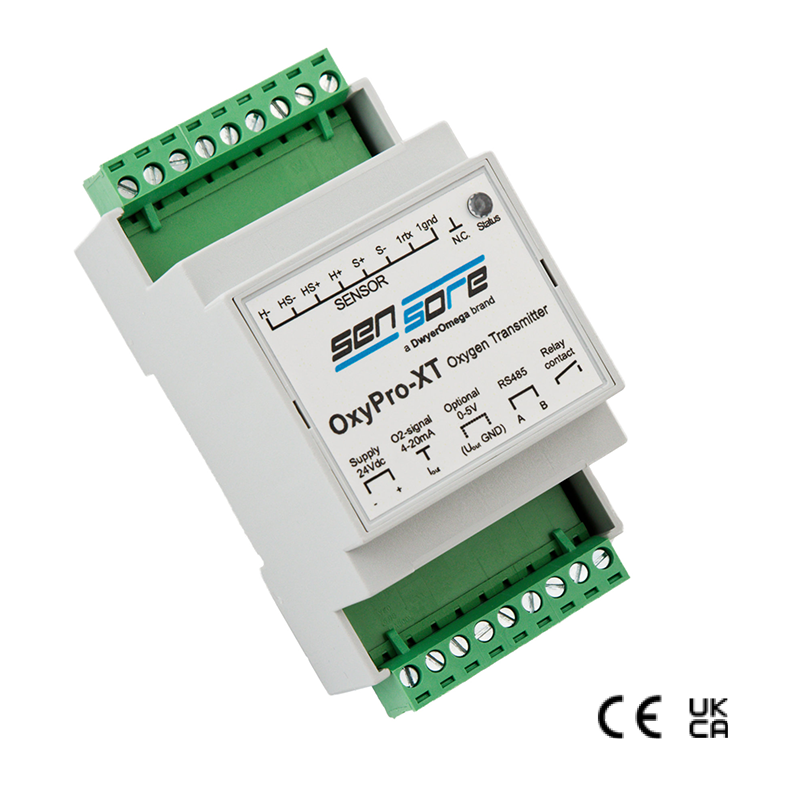

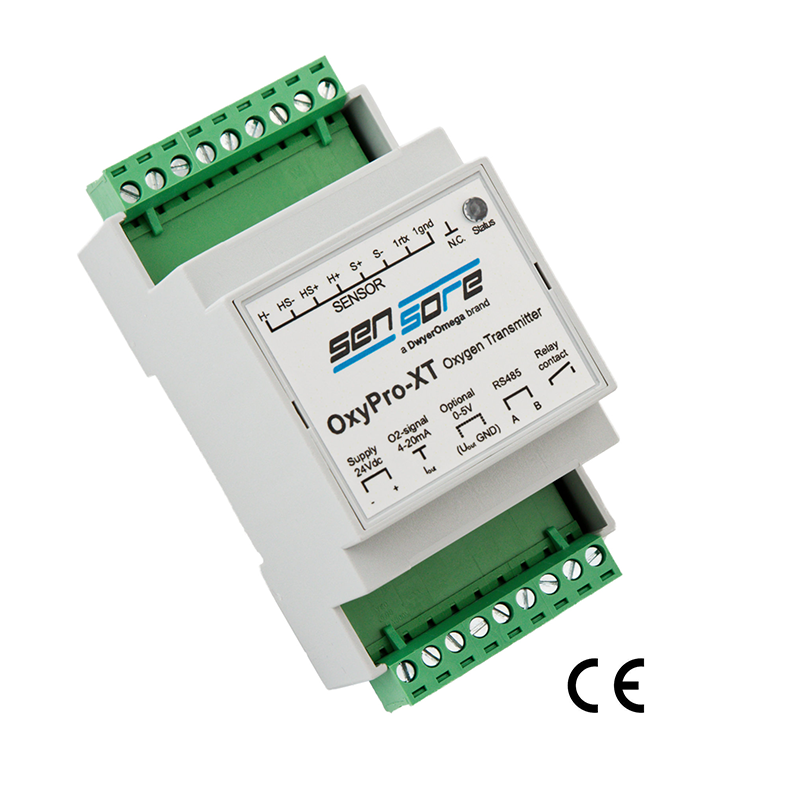

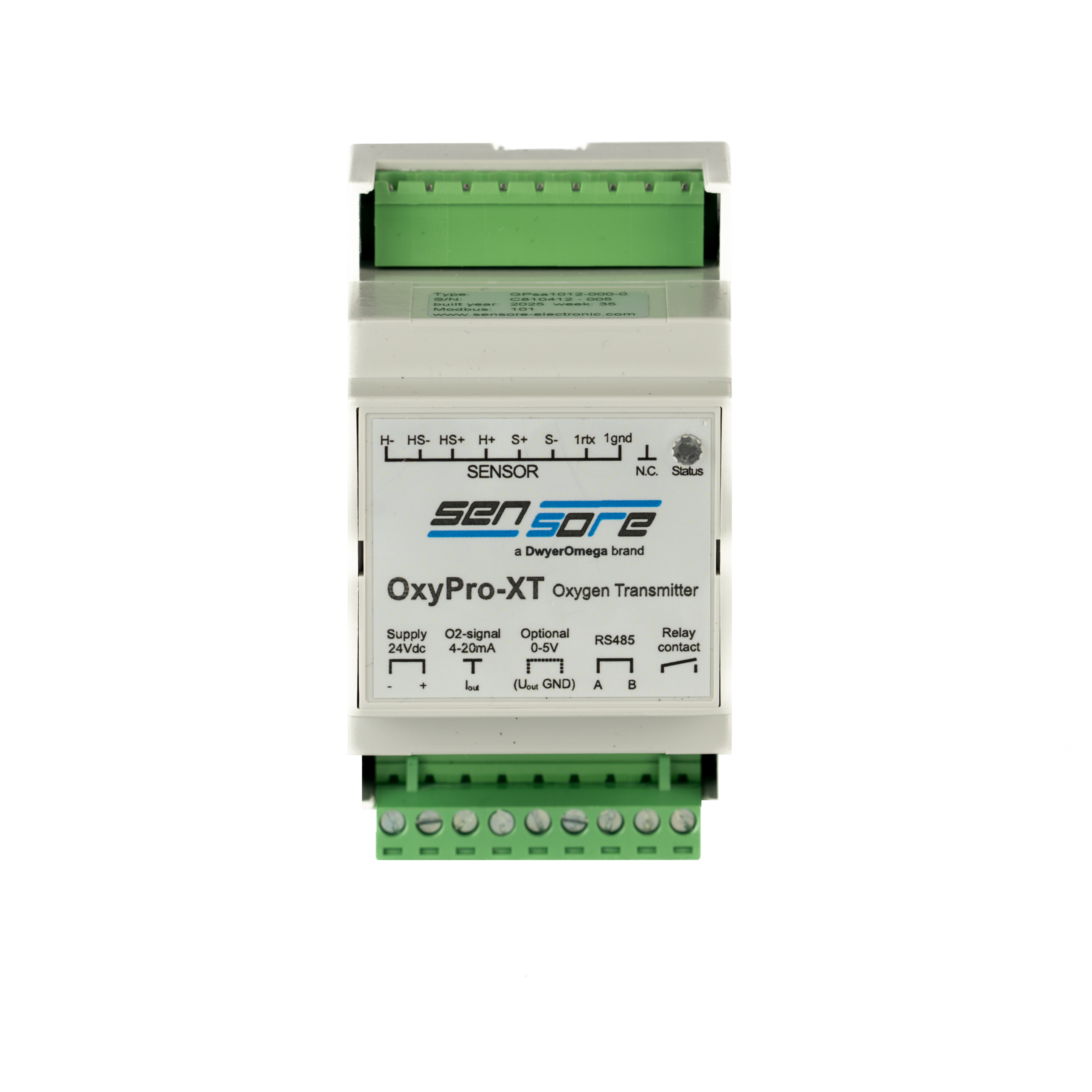

OxyPro-XT – Oxygen Transmitter
Contact our experienced engineers to discuss your application needs.
Details
- No calibration required
- Measurement ranges from 10 ppm to 96% defined by selected smart sensor
- Pre-calibrated smart sensors
- Analog 0…5 V, 4…20 mA and RS485 Modbus RTU output
- User Programmable O2-alarm / Relay

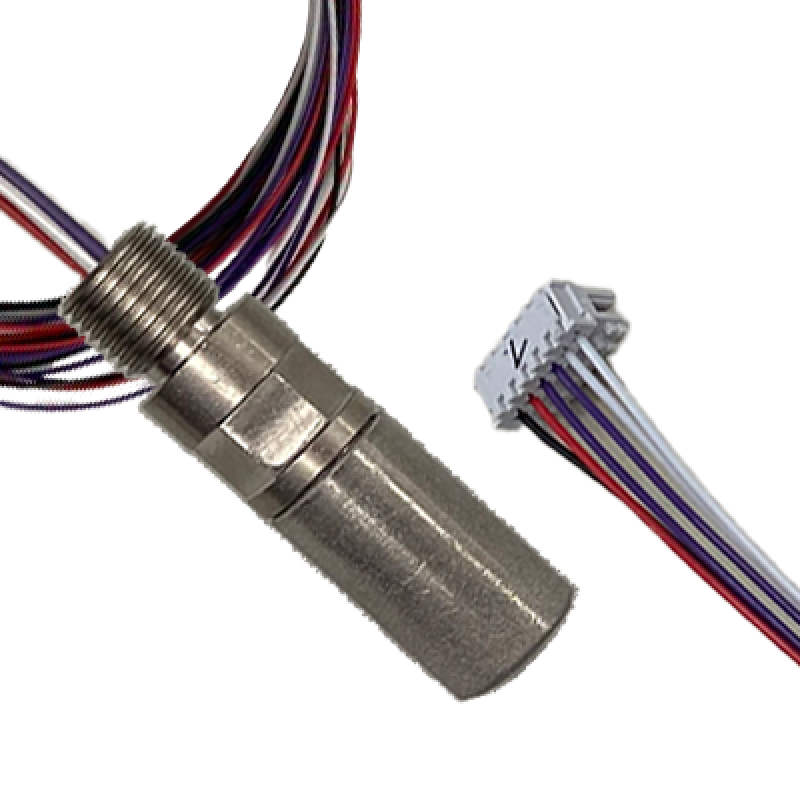

The OxyPro-XT uses SMART sensors based on O2 diffusion-limiting zirconia technology, delivering a long-life, reliable solution. Each smart sensor is individually calibrated against an O2-reference. The resulting calibration data is stored within the sensor. Upon connection of the sensor, the calibration and operating parameters are uploaded into the transmitter, allowing a plug and play approach in the application.

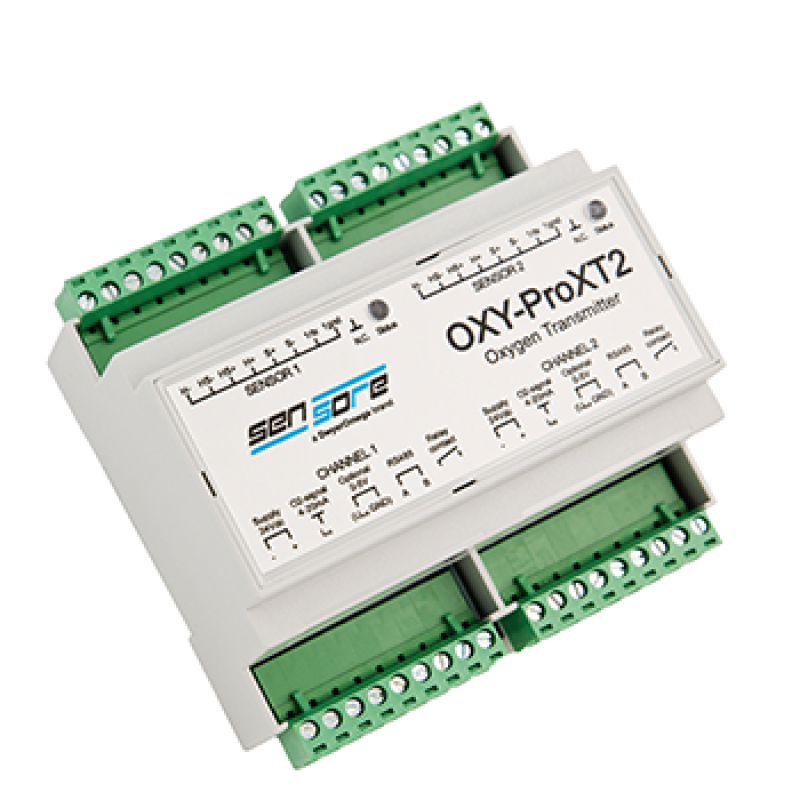

The transmitter is compatible with many sensors and thread/flange types from the SENSORE product range. The OxyPro-XT is a single channel / single range solution, for the combination of two different measurement ranges please refer to the dual channel solution OxyPro-XT2.
The transmitter is compatible with many sensors and thread/flange types from the SENSORE product range. The OxyPro-XT is a single channel / single range solution, for the combination of two different measurement ranges please refer to the dual channel solution OxyPro-XT2.
Applications:
Laboratory / Measuring instrumentation:
- Oxygen meter
- Measurements under controlled O2 content
- Inert gas processing cabinets (glove boxes)
- Incubators (controlled bacterial growth)
Food industry:
- Packaging and controlled food testing
Medical:
- Oxygen concentrators
Industry:
- Nitrogen/Oxygen concentrators
- Additive Manufacturing (AM)
- Inert gas processing machines and cabinets
- Inert gas welding monitoring
- Storage with increased N2 atmosphere (oxidation prevention)
- Drying units
